Automatic Optical Turnstile For Entrance Access Control System Gate Exit Supermarket Swing Gate
Speed Gate Turnstile RS 1006 is consist of wing,sensor,electric circuit,mechanism,motor,led lamp and so on. Speedlane Turnstile RS 1006 upgrading product of Flap Turnstile,the wing height up to 1400mm from ground. Speed Turnstile RS 1006 outer casing is made of 2.0mm(standard) thinckness 304 stainless steel. Speed Gate Turnstile RS 1006 also called: Speed Barrier,Speed Doors,Speed Turnstiles,Speedlane Turnstiles and so on. Face Recognition,RFID,Fingerprint,Biometric Reader Device,Smart Card Sliding Turnstile RS 1006 anti-crawling,anti-climbing. Speed Turnike RS 1006 mainly used in high security places,such as: Metro Station,Bus Station,Bank,Kindergarten,Laboratory,University,Gymnasium,Waterpark and so on. Speed Torniquetes RS 1006 with standard fire interface ,wing poen for evacuation even power is not cut off when fire alarm triggered .memory can be set ,swipe cards several times for group pass. Speed Barriere RS 1006 fast transit speed,wing color,casing size and sensor number can be customized.
Parameter
| Product Name | Speed Gate Turnstile |
| Moduel No. | RS 1006 |
| Size | 1500*330*1000mm. |
| Material | thickness 1.5mm, 304 stainless steel |
| Channel width | 600mm |
| Passing speed | 30-40 p/m |
| Unlocking time | 0.2 seconds |
| Input voltage | 100-240V |
| Drive voltage | 24V |
| Opening signal input | dry contact |
| Ambient temperature | : -25~+70 |
| Power | 30W |
| Opening signal input | dry contact |
| The material thickness | 1.5mm |
Function
(1)Plexiglass is used in the swipe card area and status display area, and the base color is deep black
(2)Break-in alarm,Trailing alarm,Reversed break-in alarm
(3)Anti-pinch function,Infrared induction function and intelligent logic judgement
(4)Emergency evacuation function,Emergency-off function
(5)Brushless motor control system
(6)Intelligent deceleration braking system
(7)Stop when get blocked or reversible system
(8)Memory function of continuous swiping card
(9)Normally open/ normally closed/unidirection/setting free passage condition
(10)Checking working status and failure indication function when starting up
(11)Standard access interface, fire linkage and remote open-close function
Features
1.Optional card reader:Rfid card ,fingerprint scanner ,face machine ,Bar code, QR code ,card collection ,intercom system ,remote control and so on
2. Access control system ,Ticketing system ,consumption system
3. Fast stable operation
4. Standard/customize housing design (ODM/OEM)
5. Memory function (optional)
6. Several working modes option
7. Brushless motor /Brush motor /Servo motor
8. It can be directly controlled by remote computer
|
|

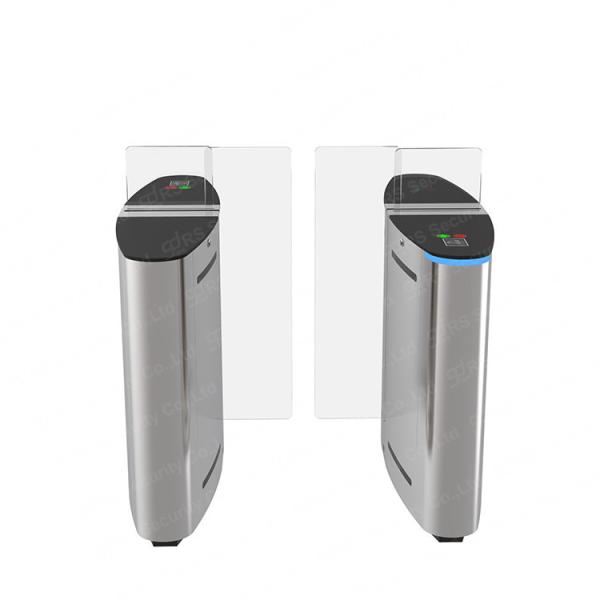

Automatic Optical Turnstile For Entrance Access Control System Gate Exit Supermarket Swing Gate Images
|
